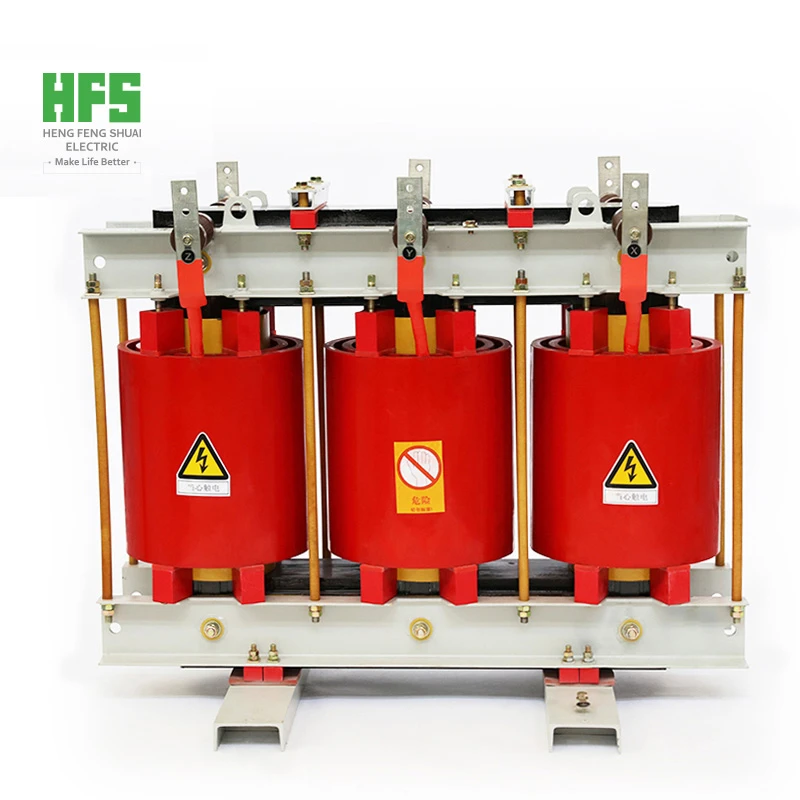

Product advantages
- High pressure copper tape winding technology, flame retardant formula vacuum pouring
- Low pressure copper foil winding technology, thermosetting epoxy prepreg cloth insulation
- Adopt three-phase five-column structure, frame structure around iron core protection
- Strong heat dissipation, low temperature rise, can operate at 150% rated load under air cooling conditions
> core
- Iron core assembled with high quality amorphous alloy silicon steel sheet
- Achieve very low loss (75% lower than GB/T10228 standard) through the control of silicon steel sheet shearing and stacking process
- The surface of the core is sealed with class F or CLASS H core paint to prevent corrosion and rust
Low voltage winding
- The low voltage winding is made of high quality copper foil
- Insulated by thermosetting epoxy preimpregnated cloth
- Winding ends are insulated with thermosetting epoxy preimpregnated cloth
- Excellent insulation resistance
- Very good resistance to radial stress caused by short circuit
- The outgoing terminal of the low-voltage winding is tinned copper bar
> High voltage winding
- Made of insulated copper wire and using the patented technology of Hengfengyou Electric
- The application of these methods makes the electric field between adjacent conductors very low
- Transformer structure is reliable during normal operation and transportation
> High quality material
- Silicon steel sheet from China Wisco
- China produces high quality anaerobic copper
- Huntsman Epoxy resin (including flame retardant filler)
> Patented technology
- The high voltage coil is molded under high vacuum, and the castable material system adds a unique flame retardant filler, which is a patented technology of Hengfengyou Electric. When the transformer is exposed to flame, it will immediately self-extinguish. With unique and excellent flame retardant characteristics and the ability to adapt to bad working environment.
Product parameters
| 类型 |
额定容量
（kVA） |
电压(kV) |
联结组标号 |
空载损耗kW) |
负载损耗
(kW) |
短路阻抗
(%) |
空载电流(%) |
| SH15-M-30/10 |
30 |
10
10.5
|
Dyn11
or
Yyn0
or
Yzn11 |
33 |
630/600 |
4.0 |
1.50 |
| SH15-M-50/10 |
50 |
43 |
910/870 |
1.20 |
| SH15-M-63/10 |
63 |
50 |
1090/1040 |
1.10 |
| SH15-M-80/10 |
80 |
60 |
1310/1250 |
1.00 |
| SH15-M-100/10 |
100 |
75 |
1580/1500 |
0.90 |
| SBH15-M-125/10 |
125 |
85 |
1890/1800 |
0.80 |
| SBH15-M-160/10 |
160 |
100 |
2310/2200 |
0.60 |
| SBH15-M-200/10 |
200 |
120 |
2730/2600 |
0.60 |
| SBH15-M-250/10 |
250 |
140 |
3200/3050 |
0.60 |
| SBH15-M-315/10 |
315 |
170 |
3830/3650 |
0.50 |
| SBH15-M-400/10 |
400 |
200 |
4520/4300 |
0.50 |
| SBH15-M-500/10 |
500 |
240 |
5410/5150 |
0.50 |
| SBH15-M-630/10 |
630 |
320 |
6200 |
4.5 |
0.30 |
| SBH15-M-800/10 |
800 |
380 |
7500 |
0.30 |
| SBH15-M-1000/10 |
1000 |
450 |
10300 |
0.30 |
| SBH15-M-1250/10 |
1250 |
530 |
12000 |
0.20 |
| SBH15-M-1600/10 |
1600 |
630 |
14500 |
0.20 |
| SBH15-M-2000/10 |
2000 |
750 |
18300 |
5.0 |
0.20 |
| SBH15-M-2500/10 |
2500 |
900 |
21200 |
0.20 |
Ordering instructions
- Main parameters of transformer (voltage, capacity, loss and other main parameters)
- Transformer operating environment (altitude, temperature, humidity, location, etc.)
- Other customization requirements (coupling groups, colors, oil pillows, etc.)
- The minimum order quantity is 1 sets, worldwide delivery within 7 days
- Normal delivery period of 30 days, worldwide fast delivery
