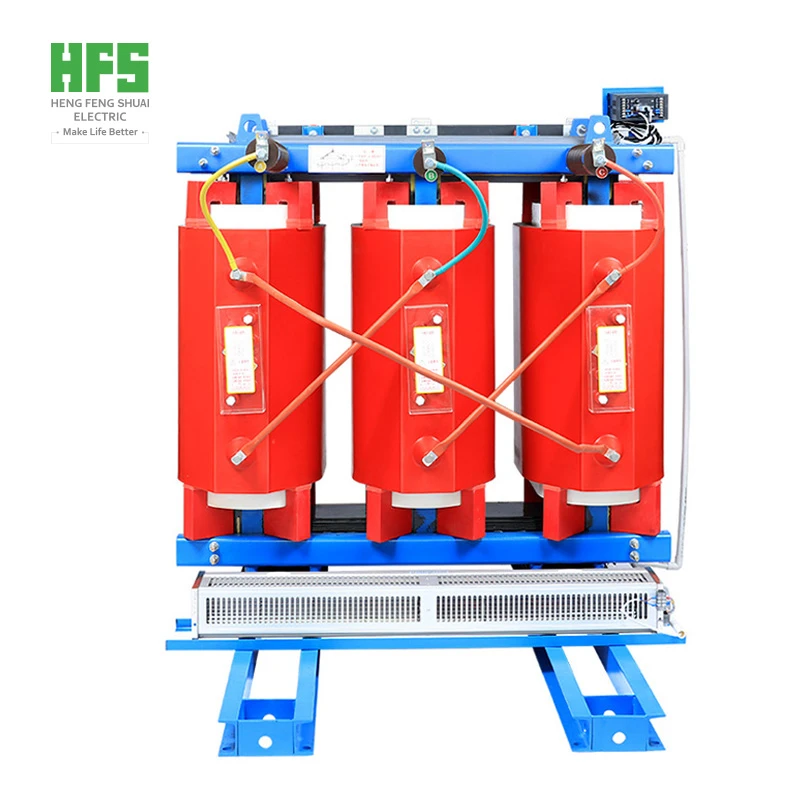

Scbh15/33kv Amorphous Alloy Dry Distribution Transformer

  • Classification: Amorphous Transformer
  • Number of Views: 195次
  • Date of issue: 2023-06-25 08:28:15


  • Product overview:- Lower loss, energy saving and environmental protection, 70-80% energy saving than SCB9 series
    - Actual measurement is better than GB and IEC standards, CB, CCC, KEMA and other certification
    - More safety excellent fire performance F1 class
    - Equipped with perfect temperature protection control system, it can run under 150% rated load under forced air cooling condition
    - Global operation verified high reliability, has been exported to more than 50 countries and regions
    - Mainly used in 33KV urban distribution network, industrial and mining enterprises and civil building power supply and distribution system
    - Products are mainly exported to southeast Asia, Central Asia, East Asia and other countries and regions
    - Execution standard: GB1094.11-2007, GB/T22072-2008 and IEC60076-11 standard; The product is H class (operating temperature 180℃) heat resistant grade
    - The shell material is aluminum alloy, cold rolled steel plate, stainless steel, etc. (protection grade IP20, IP23, etc.)


Product advantages
Scbh15/33kv Amorphous Alloy Dry Distribution Transformer
 Leading technology
- High pressure copper tape winding technology, flame retardant formula vacuum pouring
- Low pressure copper foil winding technology, thermosetting epoxy prepreg cloth insulation
- Adopt three-phase five-column structure, frame structure around iron core protection
- Strong heat dissipation, low temperature rise, can operate at 150% rated load under air cooling conditions

The iron core
- Iron core assembled with high quality amorphous alloy silicon steel sheet
- Achieve very low loss (75% lower than GB/T10228 standard) through the control of silicon steel sheet shearing and stacking process
- The surface of the core is sealed with class F or CLASS H core paint to prevent corrosion and rust

Low voltage winding
- The low voltage winding is made of high quality copper foil
- Insulated by thermosetting epoxy preimpregnated cloth
- Winding ends are insulated with thermosetting epoxy preimpregnated cloth
- Excellent insulation resistance
- Very good resistance to radial stress caused by short circuit
- The outgoing terminal of the low-voltage winding is tinned copper bar

 High voltage winding
- Made of insulated copper wire and using the patented technology of Hengfengyou Electric
- The application of these methods makes the electric field between adjacent conductors very low
- Transformer structure is reliable during normal operation and transportation

High quality material
- Silicon steel sheet from China Wisco
- China produces high quality anaerobic copper
- Huntsman Epoxy resin (including flame retardant filler)

Patent technology
- The high voltage coil is molded under high vacuum, and the castable material system adds a unique flame retardant filler, which is a patented technology of Hengfengyou Electric. When the transformer is exposed to flame, it will immediately self-extinguish. With unique and excellent flame retardant characteristics and the ability to adapt to bad working environment.
 Amorphous Transformer >

Product parameters
- Input voltage: 33KV
- Output voltage: 0.4kV
- Capacity: 30-2500kVA
- Note: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements
类型 额定容量
(kVA)
电压(kV) 联结组标号 空载损耗kW) 负载损耗
(kW)
短路阻抗
(%)
空载电流(%)
SH15-M-30/10 30 10
10.5






Dyn11
or
Yyn0
or
Yzn11
33 630/600 4.0 1.50
SH15-M-50/10 50 43 910/870 1.20
SH15-M-63/10 63 50 1090/1040 1.10
SH15-M-80/10 80 60 1310/1250 1.00
SH15-M-100/10 100 75 1580/1500 0.90
SBH15-M-125/10 125 85 1890/1800 0.80
SBH15-M-160/10 160 100 2310/2200 0.60
SBH15-M-200/10 200 120 2730/2600 0.60
SBH15-M-250/10 250 140 3200/3050 0.60
SBH15-M-315/10 315 170 3830/3650 0.50
SBH15-M-400/10 400 200 4520/4300 0.50
SBH15-M-500/10 500 240 5410/5150 0.50
SBH15-M-630/10 630 320 6200 4.5 0.30
SBH15-M-800/10 800 380 7500 0.30
SBH15-M-1000/10 1000 450 10300 0.30
SBH15-M-1250/10 1250 530 12000 0.20
SBH15-M-1600/10 1600 630 14500 0.20
SBH15-M-2000/10 2000 750 18300 5.0 0.20
SBH15-M-2500/10 2500 900 21200 0.20




Ordering instructions
- Main parameters of transformer (voltage, capacity, loss and other main parameters)
- Transformer operating environment (altitude, temperature, humidity, location, etc.)
- Other customization requirements (coupling groups, colors, oil pillows, etc.)
- The minimum order quantity is 1 sets, worldwide delivery within 7 days
- Normal delivery period of 30 days, worldwide fast delivery


- Authoritative certification: ISO, CE, CB, CCC, SASO, KEMA, etc
- Perfect SQA quality management system and patented technology to ensure high quality products
- Efficient production equipment and low raw material prices to ensure price advantage
- Sufficient inventory, short lead time, fast delivery worldwide
- Perfect after-sales service system, so that customers buy without worry
- Welcome customers to visit the factory, provide OEM/ODM services
