China Mobile International Information Port: referred to as the International Information Port, is the largest civil engineering project of China Mobile Corporation so far. The first phase of the project has a construction scale of 65,000 square meters, mainly including data centers, communication rooms and laboratories.Features of engineering construction: full-professional system integration in the communication room, high-tech and high-reliability equipment room facilities, to achieve and exceed the goal of green energy-saving design. Cabinet resources: There are about 2000 available cabinets in total. Since the advent of Hengfengshuai Electric's SCRBH15 series products, it has been widely used in communications,

coal, military, petrochemical and other industries to provide customers with high-standard and professional services.

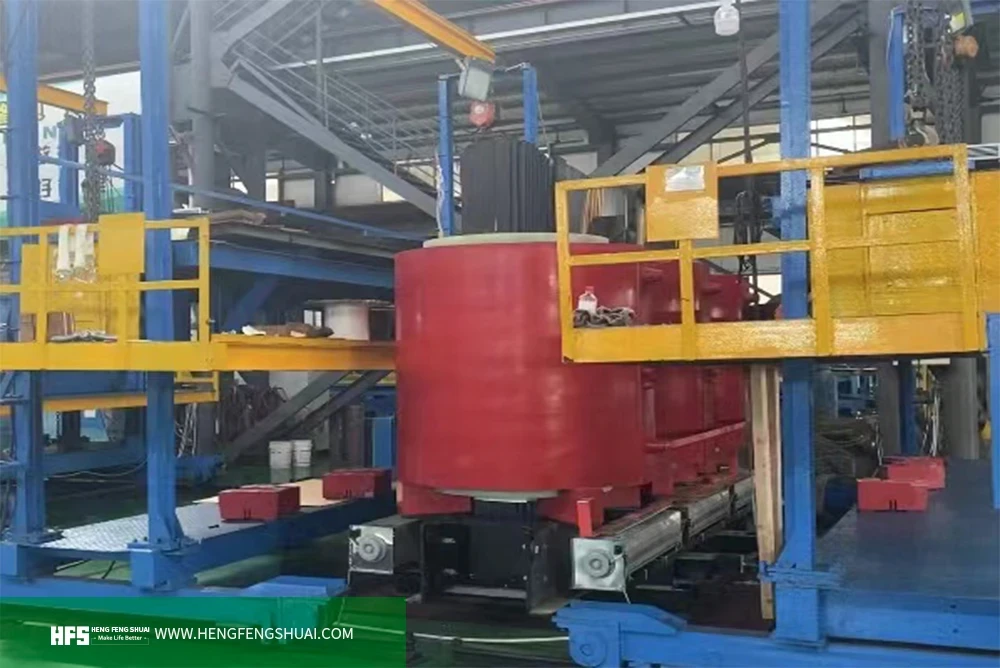

Project adopts: SCRBH series amorphous alloy dry-type transformer

Product description: The iron core is made of high-quality amorphous alloy strip and three-phase three-column manufacturing process, the no-load loss is about 70% lower than SC10, and the floor area is small;

The low-voltage winding is a foil structure with Nomex paper for interlayer and end insulation. It is cured at high temperature after being impregnated by VPI vacuum pressure, and has high mechanical strength;

The high-voltage winding adopts a multi-layer segmented structure that combines Nomex paper insulated wire and wrapping production process. After being impregnated by VPI vacuum pressure, it is cured at high temperature and has strong short-circuit resistance;

The unique iron core suspension technology and end sealing process are adopted to ensure that the amorphous iron core has less stress and low noise;

The unique semi-encapsulated structure is adopted, which has strong dustproof ability and high insulation performance of the product;

The vibration model of amorphous alloy transformer is used for simulation analysis to find out the quality control points and reduce product noise;

Using Nomex paper insulation, the heat resistance level can reach C grade, it can be recycled and reused, and it is safe and environmentally friendly;

Scope of application: It is suitable for places with low power distribution utilization and high flammability, explosion and fire protection requirements.
