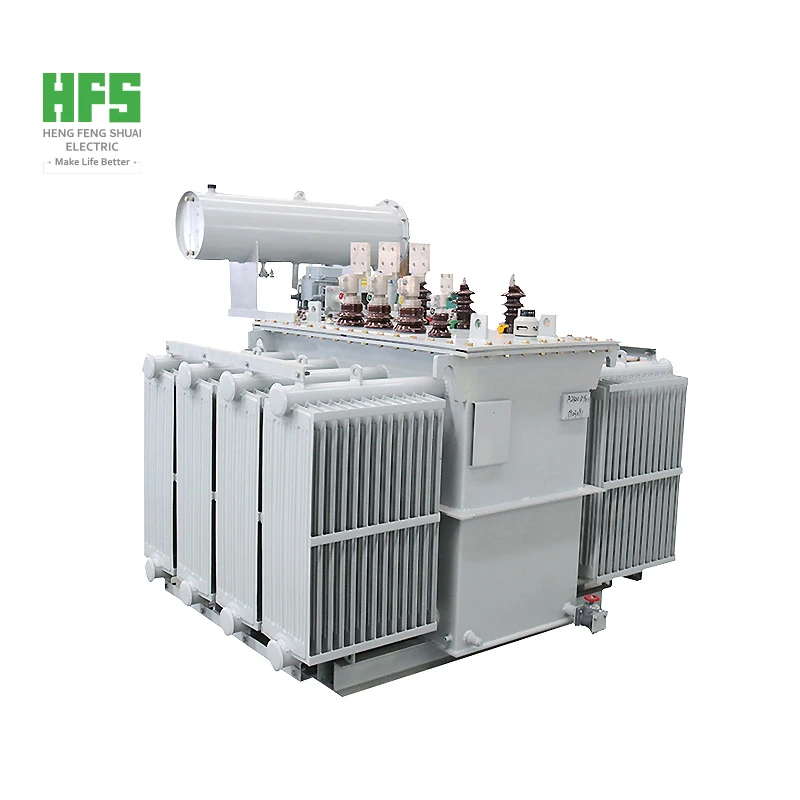

Product advantages

---

Leading technology
- Large capacity, low loss, more energy saving, the actual measurement is better than GB and IEC standards
- High pressure copper tape winding technology, improve lightning resistance
- Low voltage copper foil winding technology, high quality A class insulation material insulation, higher temperature resistance grade
- Small magnetic leakage, high mechanical strength, strong short circuit resistance
- Iron core 45° full oblique joint step laminated structure

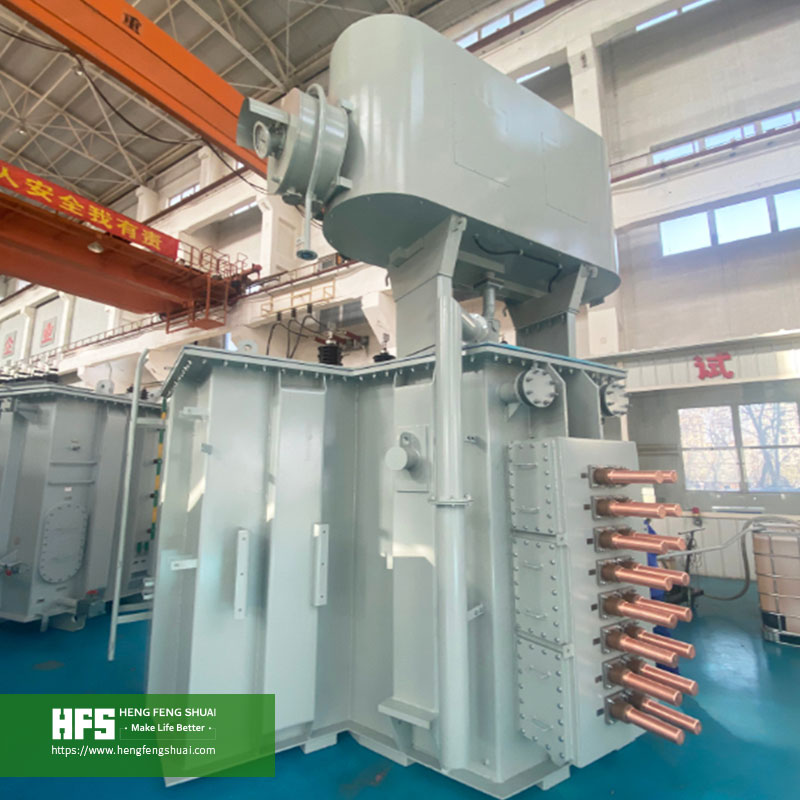

The shell
- Mitsubishi laser cutting machine and CNC punching, reducing, folding and other equipment to ensure the accuracy of processing
- ABB robot automatic welding, laser detection, to avoid leakage, qualified rate of 99.99998%
- Electrostatic spray treatment, 30 years of paint (coating corrosion resistance within 100h, hardness ≥0.4)
- Fully sealed structure, maintenance-free and maintenance-free, normal operation life of more than 30 years

The iron core
- The core material is high quality cold rolled grain oriented silicon steel sheet with mineral oxide insulation (from Baosteel, Wisco, China)
- Minimize loss level, no-load current and noise by controlling the cutting and stacking process of silicon steel sheet
- The iron core is specially reinforced to ensure the transformer structure is firm during normal operation and transportation

winding
- Low voltage winding is made of high quality copper foil, excellent insulation resistance
- The high voltage windings are usually made of insulated copper wire, using the patented technology of Hengfengyou Electric
- Very good resistance to radial stress caused by short circuit

High quality material
- Baosteel, Wisco production of silicon steel sheet
- China produces high quality anaerobic copper
- CNPC (Kunlun Petroleum) High quality transformer oil (25#)

Patent technology
- Thanks to hengfengyou electric "ultra-low loss energy saving power transformer" patent technology, can realize 5% material saving, transformer loss than similar products in the market reduced 10-20%, more energy saving and environmental protection.


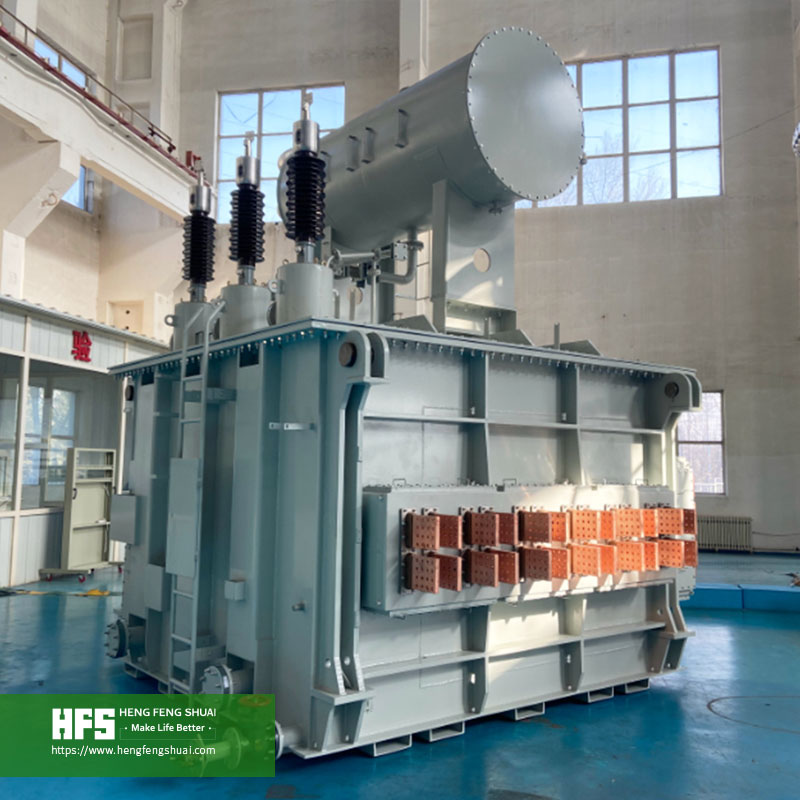

Product parameters

---



Furnace transformer parameter table
Rated Capacity (kVA)	Vector  Group	Primary Voltage (kV)	Secondary Voltage (V)	No.  of  Taps	Secondary  Rated  Current (A)
4000	Dd0 Yd11	10	240; 138; 121; 210	4	9630
4000		35	240; 139; 121; 210	4	9626
4200		10	240; 138; 129; 224; 210; 121	6	10112
4200		35	240; 138; 129; 224; 210; 121	6	10107
5000		10	240; 139; 121; 210	4	12028
5000		35	240; 130; 121; 210	4	12032
5500		10	260; 150; 139; 240; 210; 121	6	12208
5500		35	260; 150; 139; 240; 210; 121	6	12218
6300		10	260; 150; 139; 240; 210; 121	6	13983
6300		35	260; 150; 139; 240; 210; 121	6	13991
8000		10	260; 150; 139; 240; 210; 121	6	17749
8000		35	260; 150; 139; 240; 210; 121	6	17759
9000	Dd0	10	280; 260; 240; 220; 200; 180; 160; 140	8	18576
9000		10	290; 270; 250; 230; 210; 190; 170; 150	8	22603
9000		10	340; 320; 300; 280; 260; 240; 220; 200	8	18591
9000	Yd11	35	280; 260; 240; 220; 200; 180; 160; 140	8	18551
9000		35	290; 270; 250; 230; 210; 190; 170; 150	8	22629
9000		35	340; 320; 300; 280; 260; 240; 220; 200	8	18579
10000	Dd0	10	280; 260; 240; 220; 200; 1880; 160; 140	8	20620
10000		10	280; 260; 240; 220; 200; 1880; 160; 140	8	26228
10000		10	350; 340; 330; 320; 311; 301; 291; 280; 270	9	18539
10000	Yd11	35	280; 260; 240; 220; 200; 1880; 160; 140	8	20612
10000		35	280; 260; 240; 220; 200; 1880; 160; 140	8	26245
10000		35	350; 340; 330; 320; 311; 301; 291; 280; 270	9	18571
12500	Dd0	10	300; 290; 281; 270; 260; 250; 241; 230; 221	9	24022
12500		10	320; 298; 279; 262; 247; 233; 221; 210; 199	9	29177
12500		10	349; 328; 309; 292; 277; 263; 251; 240; 299	9	26071
12500	Yd11	35	300; 290; 281; 270; 260; 250; 241; 231; 220	9	24048
12500		35	320; 298; 278; 261; 246; 233; 221; 210; 200	9	29286
12500		35	350; 329; 310; 293; 278; 264; 252; 241; 230	9	25982
15000	Dd0	10	330; 308; 289; 272; 257; 244; 232; 221; 211	9	26228
15000		10	340; 318; 299; 282; 267; 254; 241; 230; 220	9	32414
15000		10	379; 357; 338; 319; 302; 287; 273; 261; 249	9	28800
15000	Yd11	35	330; 309; 289; 272; 257; 244; 232; 221; 211	9	26214
15000		35	340; 318; 299; 283; 268; 254; 242; 231; 221	9	32357
15000		35	380; 357; 337; 319; 302; 288; 274; 262; 251	9	28653
16000	Dd0	10	340; 318; 299; 282; 267; 254; 241; 230; 220	9	27185
16000		10	340; 318; 299; 282; 267; 254; 241; 230; 220	9	34575
16000		10	390; 365; 343; 324; 307; 290; 275; 261; 249	9	30138
16000	Yd11	35	340; 318; 299; 283; 268; 254; 242; 231; 221	9	27200
16000		35	390; 365; 342; 323; 306; 289; 275; 261; 249	9	30237
16000		35	400; 373; 350; 330; 312; 295; 281; 267; 255	9	29649



Ordering instructions

---

- Main parameters of transformer (voltage, capacity, loss and other main parameters)
- Transformer operating environment (altitude, temperature, humidity, location, etc.)
- Other customization requirements
- Normal delivery period is 30 days
- Worldwide fast delivery
