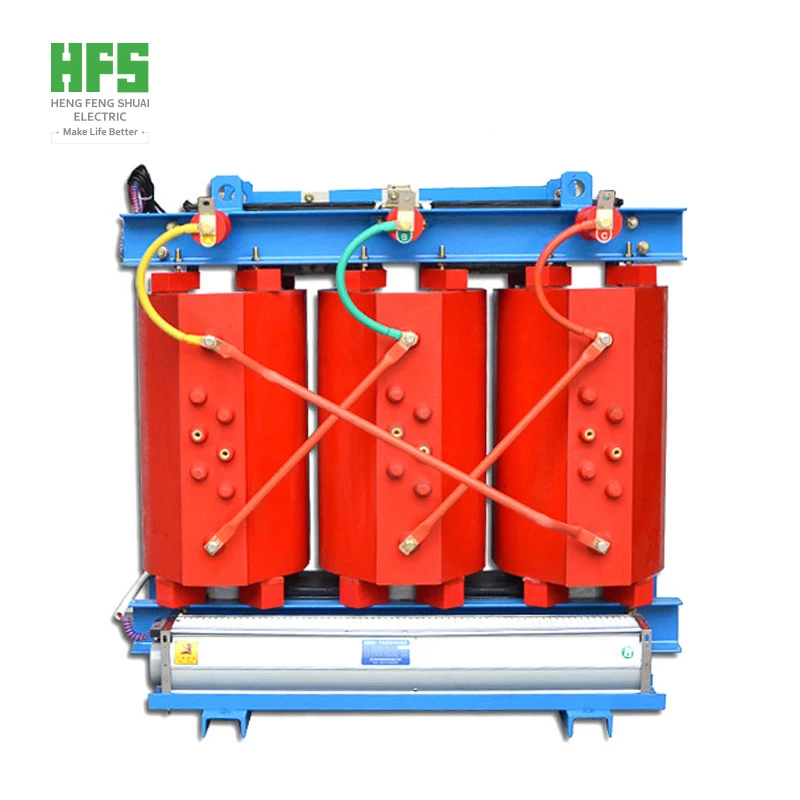

Product advantages
Leading technology
- High pressure copper tape winding technology, flame retardant formula vacuum pouring
- Low pressure copper foil winding technology, thermosetting epoxy prepreg cloth insulation
- High quality iron core 45° full oblique joint step laminated structure
The iron core
- The core is made of high quality cold rolled grain oriented silicon steel sheet insulated by mineral oxide
- Minimize loss level, no-load current and noise by controlling the cutting and stacking process of silicon steel sheet
- Apply class F or CLASS H core paint on the surface of assembled cores to prevent corrosion and rust
Low voltage winding
- The low voltage winding is made of high quality copper foil
- Insulated by thermosetting epoxy preimpregnated cloth
- Winding ends are insulated with thermosetting epoxy preimpregnated cloth
- Excellent insulation resistance
- Very good resistance to radial stress caused by short circuit
- The outgoing terminal of the low-voltage winding is tinned copper bar
- The whole winding is heated in the oven to 140°C and polymerized for 4 hours. It has excellent corrosion resistance of industrial gas

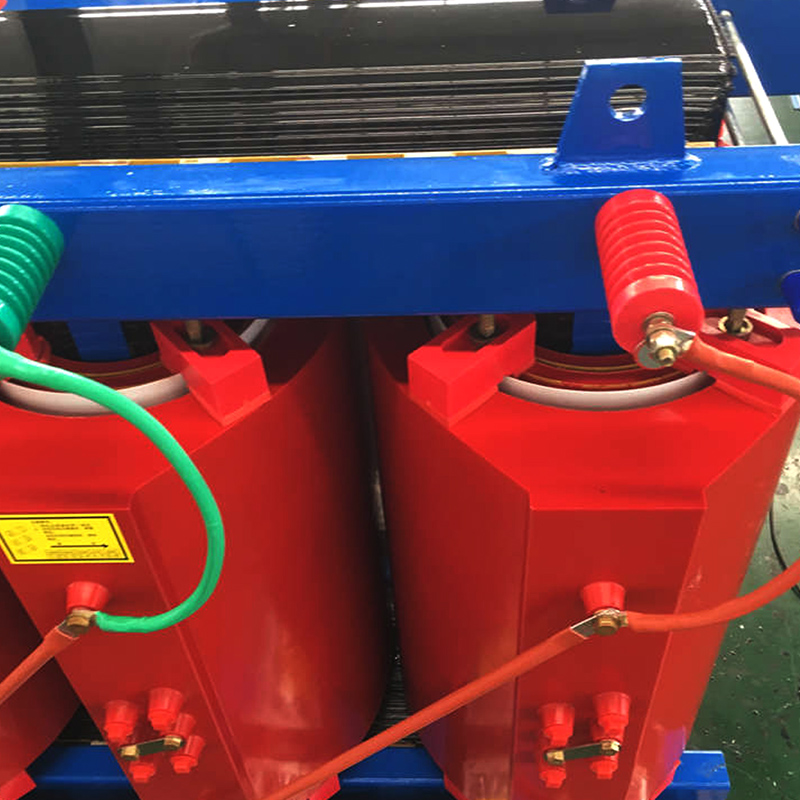

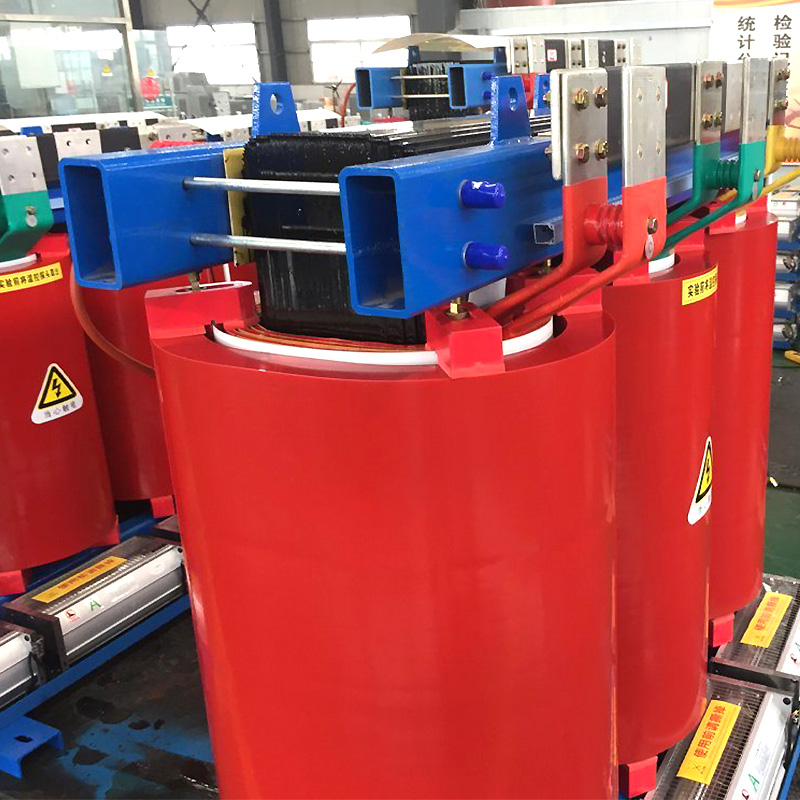

High voltage winding
- Made of insulated copper wire and using the patented technology of Hengfengyou Electric
- For small volume products, the high voltage winding uses a linear voltage gradient from top to bottom
- For products with large capacity, the high voltage winding is made by "tape winding" technology
- The application of these methods makes the electric field between adjacent conductors very low
- Transformer structure is reliable during normal operation and transportation
High quality material
- Baosteel, Wisco silicon steel sheet
- China produces high quality anaerobic copper
- Huntsman Epoxy resin (including flame retardant filler)
Patent technology
- The high voltage coil is molded under high vacuum, and the castable material system adds a unique flame retardant filler, which is a patented technology of Hengfengyou Electric. When the transformer is exposed to flame, it will immediately self-extinguish. With unique and excellent flame retardant characteristics and the ability to adapt to bad working environment.

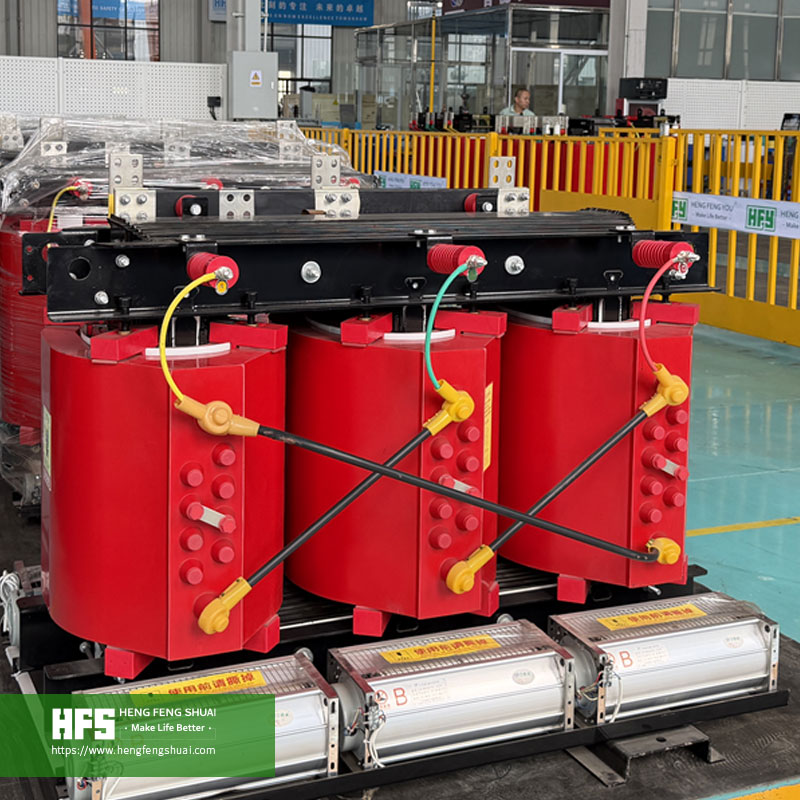

Product parameters
Capacity: 165kVA American box
Rated voltage: 10kV, 11kV, 13.8kV, 20kV, 33kV, 35kV;
Maximum operating voltage (kV) 38.5kV
Conditions of use:
1. The temperature:
Maximum daily temperature (℃) : 40; Minimum daily temperature (℃) : -25; Maximum daily temperature difference (K) : 25; Average temperature of the hottest month (℃) : 30; Maximum annual average temperature (℃) : 20; Average daily relative humidity (≤%) : 95; Average monthly relative humidity (≤%) : 90
2, altitude (≤m) : 1000
3, solar radiation intensity (W/cm2) : 0.1
4. Maximum ice thickness (mm) : 10
5, 10m high from the ground, maintain 10min average maximum wind speed (m/s) : 35
6. Ground horizontal acceleration (M/S2) : 2
7, installation place: outdoor; 8. Pollution grade: ⅲ
Ordering instructions
- Main parameters of transformer (voltage, capacity, loss and other main parameters)
- Transformer operating environment (altitude, temperature, humidity, location, etc.)
- Other customization requirements (coupling groups, colors, oil pillows, etc.)
- The minimum order quantity is 1 sets, worldwide delivery within 7 days
- Normal delivery period of 30 days, worldwide fast delivery
