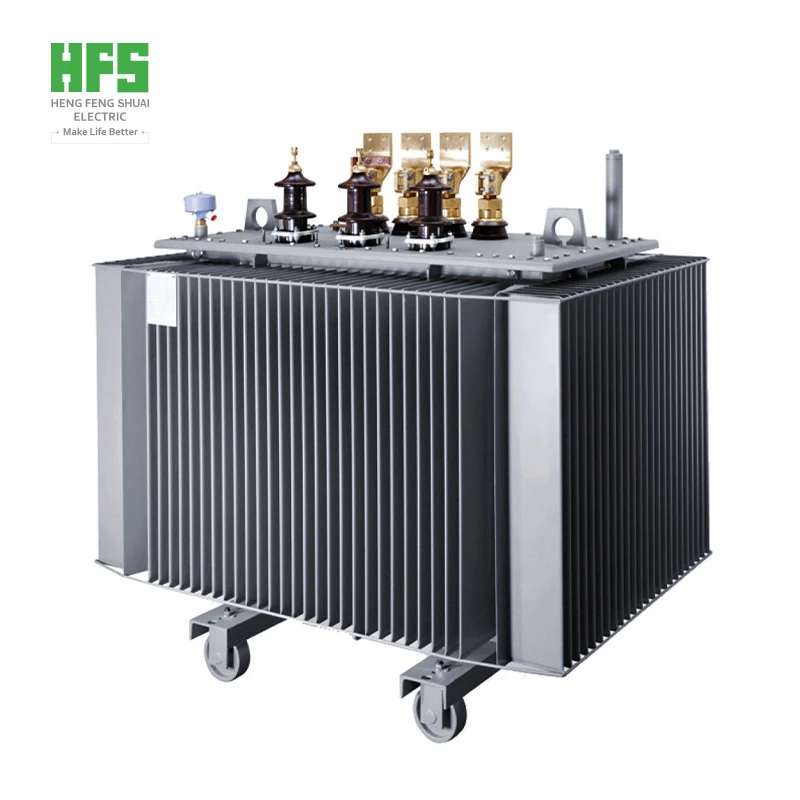

SH15 Series Fully Sealed 33KV Three-phase Oil-immersed Power Distribution Transformer

  • Classification: Amorphous Transformer
  • Number of Views: 97次
  • Date of issue: 2023-06-25 08:28:19


  • Product overview:- Lower loss, 70-80% energy saving than S9 transformer, can operate with 120% rated load
    - Product actual measurement is better than GB and IEC standards, CB, CCC, KEMA and other certification
    - High reliability of operation verification in more than 50 countries and regions around the world
    - Mainly used in 33KV distribution network of State Grid, power supply and distribution system of industrial and mining enterprises and civil buildings
    - Our products are mainly exported to developing countries and regions in Central Asia, East Asia and Southeast Asia
    - Implementation standard: IEC 60076 series, GB/T25446-2010, GB1094 series


Product advantages
SH15 Series Fully Sealed 33KV Three-phase Oil-immersed Power Distribution Transformer
Leading technology
- Low pressure copper foil winding and high pressure copper tape winding technology, improve lightning resistance
- Small magnetic leakage, high mechanical strength, strong short circuit resistance
- Strong heat dissipation, low temperature rise, can run 120% of the rated load

The shell
- Mitsubishi laser cutting machine and CNC punching, reducing, folding and other equipment to ensure the accuracy of processing
- ABB robot automatic welding, laser detection, to avoid leakage, qualified rate of 99.99998%
- Electrostatic spray treatment, 50 years of paint (coating corrosion resistance within 100h, hardness ≥0.4)
- Fully sealed structure, maintenance-free and maintenance-free, normal operation life of more than 50 years

The iron core
- Iron core assembled with high quality amorphous alloy silicon steel sheet
- Minimize loss level, no-load current and noise by controlling the cutting and stacking process of silicon steel sheet
- The iron core is specially reinforced to ensure the transformer structure is firm during normal operation and transportation

 winding
- Low voltage winding is made of high quality copper foil, excellent insulation resistance
- The high voltage windings are usually made of insulated copper wire, using the patented technology of Hengfengyou Electric
- Very good resistance to radial stress caused by short circuit

High quality material
- Sinowisco produces amorphous alloy silicon steel sheet
- High quality anaerobic copper from China
- CNPC (Kunlun Petroleum) High quality transformer oil (25# 40#)

Other instructions
- The low-voltage outgoing terminal is tinned copper bar
- The high-voltage outlet terminals are ring tinned bolts
- Default no-load voltage regulation (on-load voltage regulation can be customized)
Amorphous Transformer

Product parameters
Capacity: 2500kVA American box
Rated voltage: 10kV, 11kV, 13.8kV, 20kV, 33kV, 35kV;
Maximum operating voltage (kV) 38.5kV
Conditions of use:
1. The temperature:
Maximum daily temperature (℃) : 40; Minimum daily temperature (℃) : -25; Maximum daily temperature difference (K) : 25; Average temperature of the hottest month (℃) : 30; Maximum annual average temperature (℃) : 20; Average daily relative humidity (≤%) : 95; Average monthly relative humidity (≤%) : 90
2, altitude (≤m) : 1000
3, solar radiation intensity (W/cm2) : 0.1
4. Maximum ice thickness (mm) : 10
5, 10m high from the ground, maintain 10min average maximum wind speed (m/s) : 35
6. Ground horizontal acceleration (M/S2) : 2
7, installation place: outdoor; 8. Pollution grade: ⅲ


Ordering instructions

- Main parameters of transformer (voltage, capacity, loss and other main parameters)
- Transformer operating environment (altitude, temperature, humidity, location, etc.)
- Other customization requirements (coupling groups, colors, oil pillows, etc.)
- The minimum order quantity is 1 sets, worldwide delivery within 7 days
- Normal delivery period of 30 days, worldwide fast delivery
