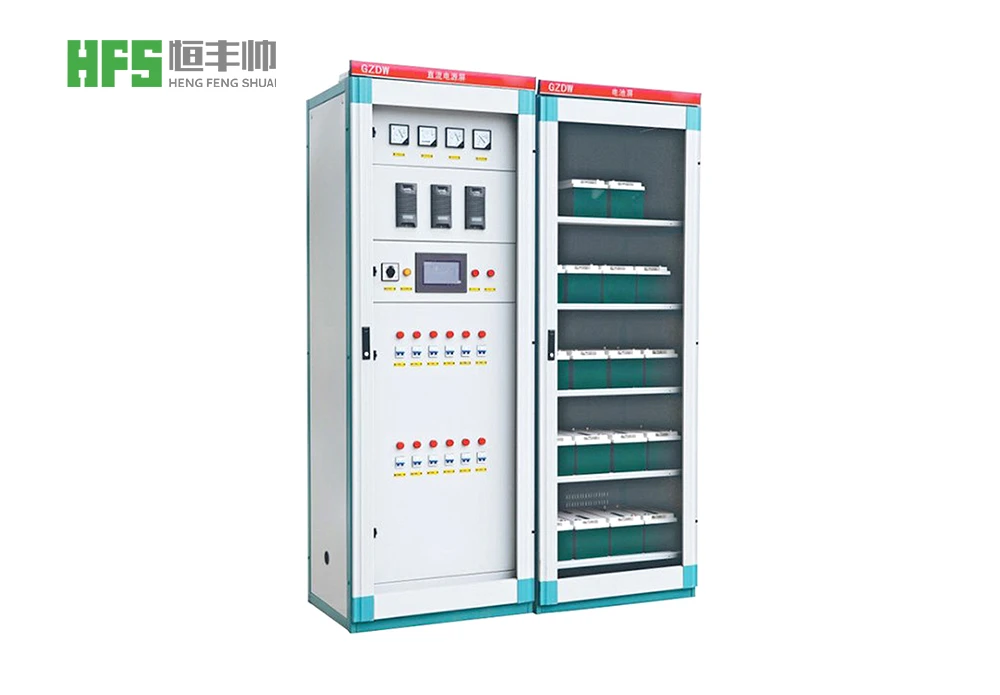

Product advantages
- Multi-channel AC power supply. When the main power supply fails, the standby power supply automatically starts running.
- Multiple high-frequency switch charging modules run in parallel, N+1 hot backup, high reliability;
- High frequency rectifier module, which can work independently in a single machine or in parallel with multiple modules, and can be used for online maintenance with electric plug and plug, convenient and fast
- Wide voltage input range, strong applicability of power grid, can be used in relatively harsh environment
- Intelligent control of charging module, smooth adjustment of output voltage and current; Independent flow equalizing, good stability and high precision
- The monitoring system adopts touch screen or large LCD Chinese characters display, friendly man-machine interface, intuitive and convenient operation
- You can set parameters for each part of the system through the monitoring module, which facilitates operation
- Open interface design, with powerful communication function, it is convenient to connect with substation RTU device, computer monitoring system, DCS
- The distributed monitoring system with microprocessor as the core is adopted to realize the telemetry, remote control, remote communication, remote adjustment and unattended of the power supply system
- Battery automatic management and protection, real-time automatic monitoring of battery terminal voltage, charge and discharge current and automatic control of battery equalization and floating charge conversion, battery overvoltage/undervoltage and overcurrent sound and light alarm and temperature automatic compensation functions. Ensure that the battery works in the best condition, prolong the battery life
N /A (Optional) DC/AC AC/DC system integration: In the case of an AC power failure, the storage battery provides continuous emergency AC/DC power for a long time
Product parameters
Capacity: 2500kVA American box
Rated voltage: 10kV, 11kV, 13.8kV, 20kV, 33kV, 35kV;
Maximum operating voltage (kV) 38.5kV
Conditions of use:
1. The temperature:
Maximum daily temperature (℃) : 40; Minimum daily temperature (℃) : -25; Maximum daily temperature difference (K) : 25; Average temperature of the hottest month (℃) : 30; Maximum annual average temperature (℃) : 20; Average daily relative humidity (≤%) : 95; Average monthly relative humidity (≤%) : 90
2, altitude (≤m) : 1000
3, solar radiation intensity (W/cm2) : 0.1
4. Maximum ice thickness (mm) : 10
5, 10m high from the ground, maintain 10min average maximum wind speed (m/s) : 35
6. Ground horizontal acceleration (M/S2) : 2
7, installation place: outdoor; 8. Pollution grade: ⅲ
Ordering instructions
he customer shall provide the following information:
- Main loop scheme diagram, secondary loop system diagram and auxiliary circuit control mode
- Equipment layout and distribution room layout
-Brand and model of main electrical components of the equipment
- In and out mode. If a bus bridge is required to connect devices, data such as bus spacing and ground height should be provided.
- Other special requirements can be negotiated with Hengfengyou Electric
